View field event
umangenius-logo
U Man Genius docs

icon picker
View field event

Jacques TUR
⁠
⁠
⁠

Quick overview of the JSON properties passed to onclick

Property
Description
Example / Usage
previousID
The ID of the previously selected record. Default is "A1".
“A1”
targetID
The ID of the record targeted by the click. Default is "A3".
“A3”
targetLineNum
The row number on which the user clicked (zero-indexed).
3
targetColumnNum
The column number that was clicked in the view (zero-indexed).
4
targetColumnValue
The text value displayed in the clicked cell.
“Lisa”
targetColumnCaption
The column caption from the field configuration (using either "caption" or "field.caption").
“First Name”
There are no rows in this table
⁠
⁠

General Workflow

Define the onclick Function within the View Field Formula The onclick function must be integrated into the view field formula. It receives an object (named "event") containing the properties described above.

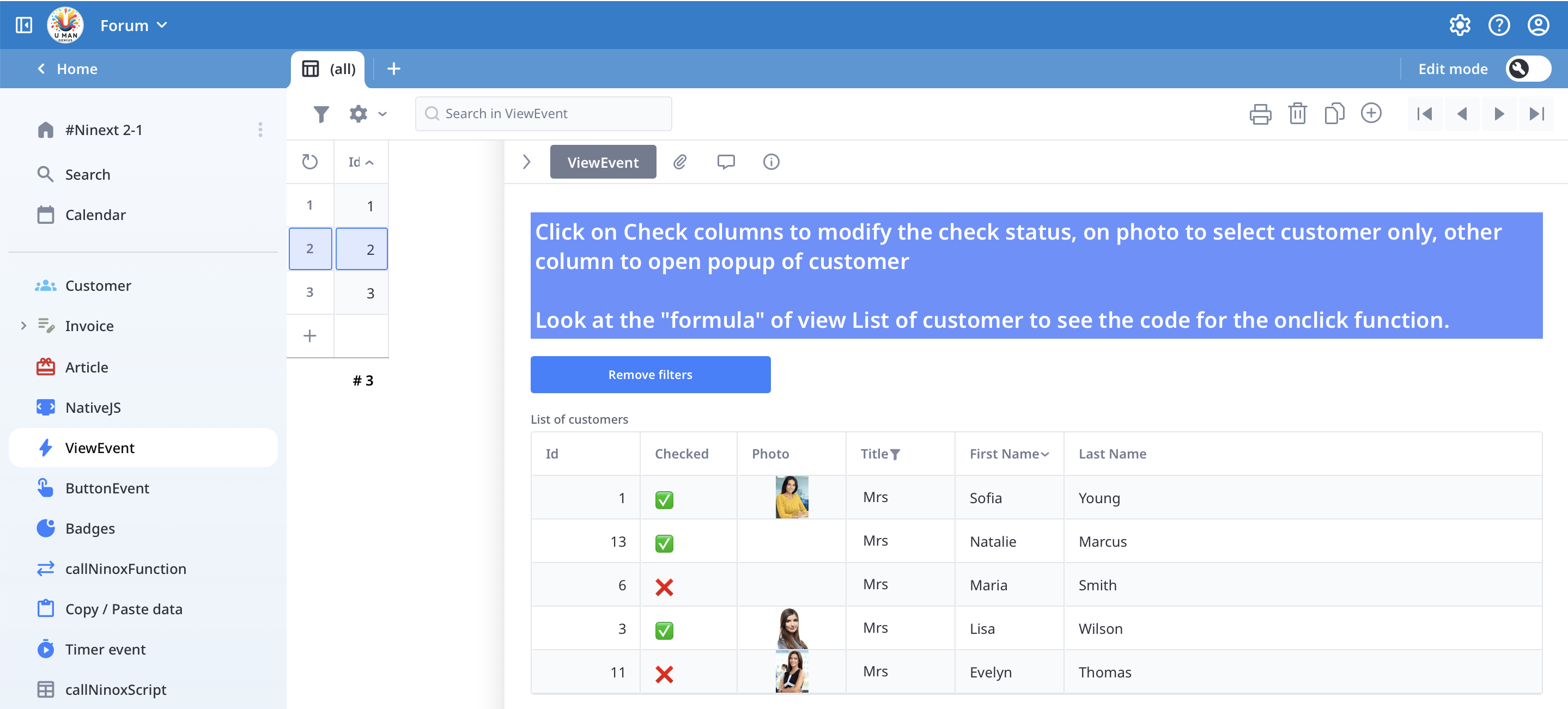

Executing Custom Code When a user clicks or taps on a cell in the view, Ninox’s hook executes the onclick function. The script can then, for example:
Update properties of a record (e.g., toggling a Boolean field).
Store the clicked record’s ID into a designated field.
Trigger conditional actions based on the clicked column.
Returning the View Content At the end of the function, the formula must return the content of the view (for example, "select Customer"). This tells Ninox which records to display after the script executes.
⁠

Implementation Examples

Complete Example

function onclick(event : any) do
"ID of selected customer := event.targetID";
var t := this;
var selCustomer := first(select Customer where Id = event.targetID);
debug("onclick");
if event.targetColumnCaption like "checked" then
selCustomer.(Checked := not Checked);
true
else
if event.targetColumnNum = 0 then
true
else
false
end
end
end;
select Customer

Comments:
The function starts by storing the clicked record’s ID into the field "ID of selected customer".
It then retrieves the corresponding record from the "Customer" table.
If the column caption of the clicked cell contains "checked", it toggles the "Checked" field on that record and returns true to indicate that the click has been handled.
Otherwise, the function returns true or false based on whether the clicked column number is 0.
Finally, the formula returns "select Customer", which displays the view’s content after executing the script.
⁠

Minimal Example

function onclick(event : any) do
"ID of selected customer := event.targetID";
debug("Clicked on Customer " + event.targetID);
// No specific action is performed here.
false
end;
select Customer

Comments:
This script simply stores the clicked record’s ID and logs a debug message.
Returning false lets the default behavior proceed for actions that aren’t specifically handled.
As always, the formula ends with "select Customer" to display the view’s content.
⁠

Key Points to Remember

Placement within the View Field Formula: The onclick function must be defined directly in the view field formula, not in a trigger or other part of the application.
Returning the View Content: Unlike other functions that expect a Boolean, the last line of the formula must return the view’s content (e.g., "select Customer").
Utilizing the Event Parameters: Use the information provided in the "event" object (previousID, targetID, targetLineNum, targetColumnNum, targetColumnValue, targetColumnCaption) to tailor your actions according to the click context.
Testing on Different Devices: Ensure that the function works correctly on both desktops and touch devices, as the hook handles both "click" and "touchend" events.
